stalk pellet mill
-stalk pellet mill making4-12mm wood pellets
-stalk pellet mill with vertical ring die
-mill with CE

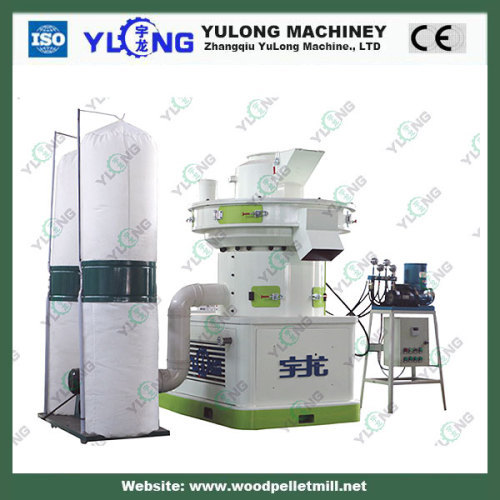

CE approved stalk pellet mill machine
XGJ series efficient centrifugal stalk pellet mill/stal pellet machine/stalk pelletizer is our main product and our patent product which has adopted the essence of wood pellet mill in oversea market.
The heart parts "double layer die"of our stalk pellet mill has unique structural assembly and "rollers" are made of high wearable alloy materials.
This stalk pellet mill mainly applicable for difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials.
Characteristics of stalk pellet mill machine:
1.our stalk pellet mill machine is with Upward mould, special structure; vertical feeding, never buff placer; feeding with wide inlet, and easier heat dissipation
2.Die static, roller rotating; material centrifugation, distributed around evenly; because of the die upper layer, the materials can be kicked back to the pressure room.
3.Double-layer die, multi-function, with different die holes of upper layer and lower layer; meanwhile the double-layer dies can be used together.
4.Pressing briquette with big die hole, die and tube connected together, the density of briquette can be adjusted. Only change the tubes which link the die, which reduce cost.
5.Adjusting the length of pellets & briquettes with frequency conversion, which is the separate device in the machine; the speed depends on the length of finished products.
6.stalk pellet mill machine is with Gear drive, reduce speed through multiple channels, save power and reduce the abrasion of spare parts.
the tech parameter of stalk pellet mill
Model | Capacity for wood sawdust (kg/h) | Power (kW) | Pellet diameter (mm) | Weight (T) | Size (mm) |
XGJ560 | 1200-1800 | 90 | 4,6,8,10 | 6.1 | 2600×1300×2300 |
XGJ580 | 1500-2500 | 160 | 4,6,8,10 | 7 | 2900×1300×2400 |
XGJ850 | 2500-3500 | 220 | 4,6,8,10 | 14.5 | 3300×1400×3100 |
XGJ880 | 3500-5000 | 315 | 4,6,8,10 | 18 | 3800×1680×3400 |
