Machines For Make Pellet Wood Biomass/Wood Biomass Pellet Making Line

Payment Terms: T/T,L/C,WU
Place of Origin: Shandong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: XGJ
Production Capacity: 300 Set/Sets per Month
Delivery Date: within 7 working days
Pellet size: 4-12mm
Dimension(L*W*H): 2600x1300x2300mm
type: Vertical Ring Die
Means of Transport: Ocean,Land
Packing: Iron Steel Box
Application: Biomass-energy fules plant,...
Power: 90kw
Weight: 5.3t
Material: Alloy Steel

Efficiency high overload capacity, low noise, small vibration, reliable structure ,beautiful appearence

The process of  bamboo waste pellet making line   :

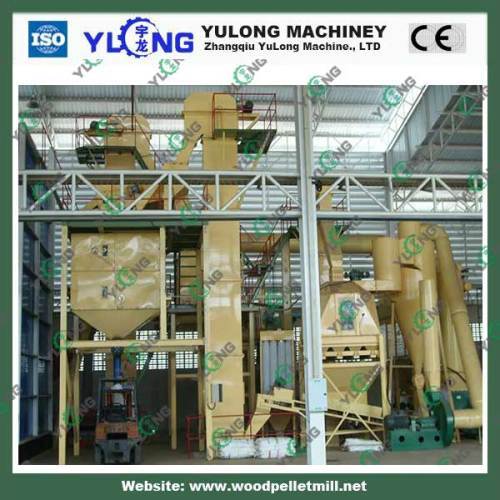

A complete production line contains nearly 10 sets machines, the detail design is depends on the client's detial requirements.And depends on the client's raw materials.Normally, it contains wood crusher, dryer, conveyor, pellet mill, hoisting machine, cooling and separator, dust collector and packing machine.The line is controlled by electric cabinet which also display the working condition.The whole line needs 5~7 workers to operate.

Introduction of  pellet making machine  line

1. Raw materials Prepared

Wood Pellets is mainly made of any wood waste and biomass particles, such as wood sawdust, wood shavings, wood chips, wood logs, straw, rice husk, coffee husk etc. At a wood pellet plant, raw material need to be well prepared before pelletizing, then get dried, compressed, and formed into small eraser-sized bits, the wood pellets get from wood pellet plant are clean, pleasant smelling and smooth to touch.

2. Crushing process – Hammer mill

The hammer mill is a machine whose purpose is to crush materials by the collision between the high-speed hammer and materials.  It mill raw material like tree branch, wood shavings, wood chips, wood logs, cotton stalk, corn stalk, wheat straw etc, with size less than 50mm (diameter). After milled, the output size can reach diameter 3-5 mm, then it is pushed to next process to get dried and pelletized.

3. Drying process – Rotary Dryer

After crushing process, the wood and biomass material need to be well conditioned on moisture before pelletizing. The best moisture content to pelletizing is about 14-16%. Our rotary dryer is made up of burning stove and main rotary dryer which is high efficiency in drying the wood and biomass material. It use steam to heat air and contact material to remove certain degree of moisture. It is very important for wood pellet plant to using moisture detector which will determine the most suitable moisture before pelletizing.

4. Pelletizing process - Wood pellet machine

Ring Die wood pellet machine is the heart of the pellet machine production line. The Pellet machine is widely used in compacting of wood, straw, other biomass sources into pellet. Capacity ranges from 1T to 10T per hour. Our ZLG series pellet mill adopt  bearings from Sweden and bearings from Japan, the motors in the wood pellet is high quality components make the pellet mill more efficient and durable.

tech data of main pellet mill in the bamboo waste pellet making line

Model

Power(kw)

Capacityt/h)

Product spec(mm)

Weight(t)

Dimension(mm)

XGJ560

90+3+0.25+1.5

1-1.5

Φ4-12

5.3

2600x1300x2300

XGJ720

160+3+0.25+2.2

1.5-2

Φ4-12

9.5

2900x1300x2400

XGJ850

220+4+0.55+3

2-3

Φ4-12

14. 2

3300x1400x3100

XGJ920

315+5.5+3+0.55+3

3-4

Φ4-12

18

3800x1680x3400

XGJ1050

360

5-6

Φ4-12

2 4.5

3800x1880x3500



5. Cooling process - Pellet cooling machine

After the pelletizing process, the temperature of the wood pellet is about 60-80 degrees Celsius, and the moisture content of the wood pellets is about 15%. A cooler must then be used to reduce the moisture content of the wood pellet to about 3-4%, thereby making the wood pellet easy to store. However, some customers said that the local climate is very humidity, they want to cool the wood pellets with moisture 7-8%. It is no problem, our new stabilizer combined cooler can do it well.

6. Packing process - Pellet packing machine

After cooling process, the wood pellets will not directly enter into the fuel process, avoiding the wood pellet affected with damp, the packing process is very necessary. The packing process is effectively handled by our Semi-Auto Packing Machine.
